Pullman Orchard Singapore Enhances Guest Experience with New LED Wall, Audio System, and Video Wall Integration
Pullman Orchard Singapore Upgrades Event Experience with LED Wall, Professional Audio, and Video Wall Integration
Prestige Solutions has successfully completed a comprehensive AV upgrade at Pullman Orchard Singapore, delivering an integrated solution that includes a high-resolution LED wall, a professional audio system, and a scalable video wall. This turnkey deployment enhances the hotel’s capabilities for conferences, corporate events, brand showcases, and digital signage, providing a seamless hotel AV integration experience.
Project Overview & Objectives
- Client: Pullman Orchard Singapore
- Scope: Indoor LED wall installation, distributed audio reinforcement, lobby and meeting-area video wall , centralized AV control and monitoring
- Goals: Improve visual impact for events, deliver uniform audio coverage, provide flexible multi-source display and remote management for hotel staff
LED Wall System (Indoor LED Video Wall)
The main LED video wall is a fine-pitch, indoor LED display engineered for close viewing distances and 4K content delivery. Key features include:
- Pixel pitch: P2.5 (fine pixel pitch) for high pixel density and crisp text/graphics at typical ballroom viewing distances
- Brightness & contrast: High brightness (>800 nits) and wide color gamut for faithful color reproduction under ambient lighting
- Seamless panels: Module-based, bezel-free splicing for a continuous visual canvas
- Signal handling: 4K@60Hz input supported, multi-format input (HDMI, SDI, DisplayPort) with LED video processor and EDID management
- Maintenance: Front-access maintenance design and redundant power/data paths for high reliability
Professional Audio System
Our audio solution was architected to match the hotel’s acoustics and event requirements. The installation includes:
- Digital audio DSP with configurable EQ, delay, and feedback suppression
- Distributed ceiling & wall speakers for even SPL across the ballroom and meeting spaces
- High-efficiency power amplifiers with networked audio control (Dante/AES67 optional)
- Wireless and wired microphone integration (lapel, handheld, boundary mics) and easy scene/preset switching via touch panel
- Room zoning to support simultaneous events with independent volume and source control

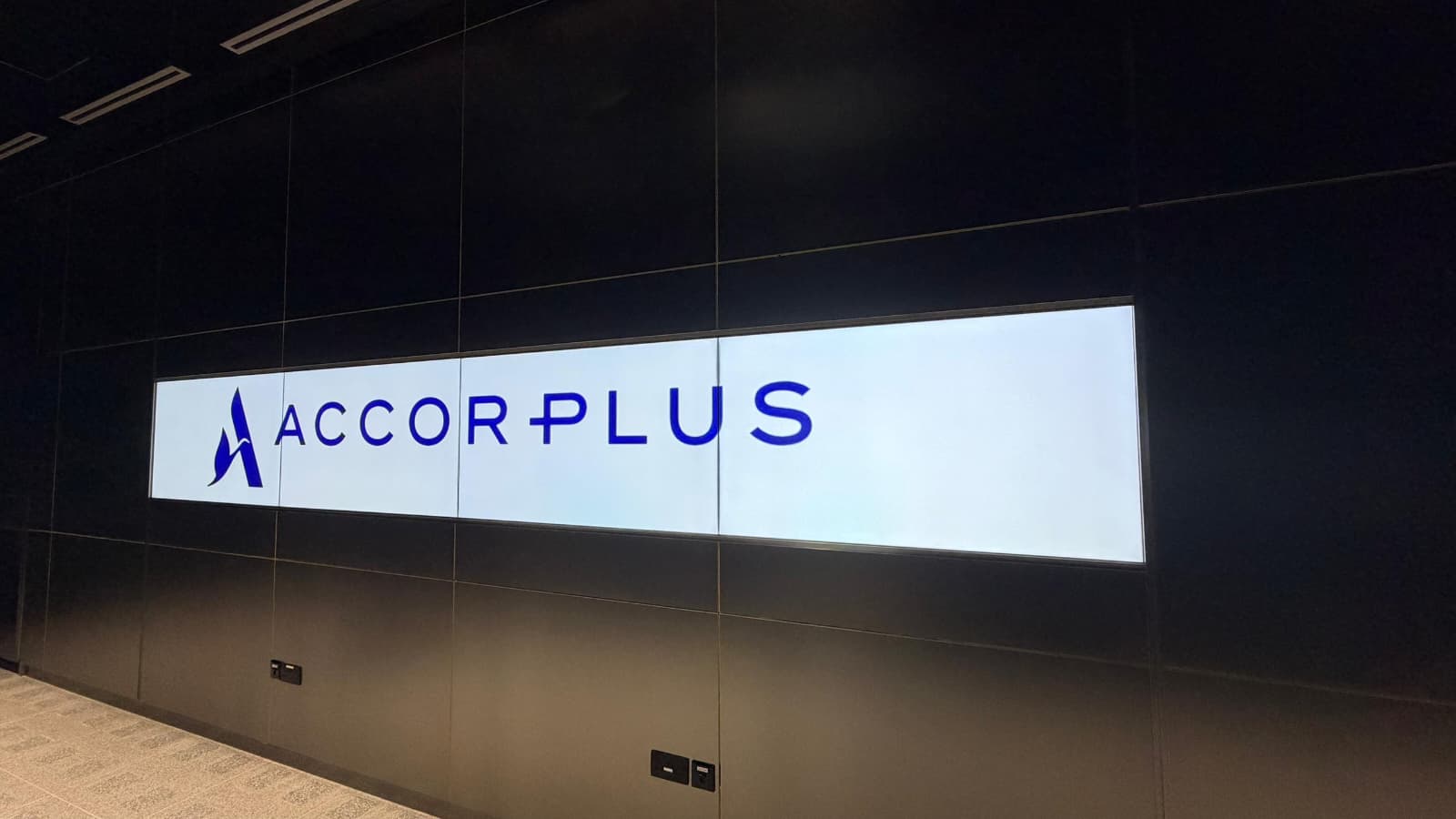

Video Wall & Lobby Displays
To extend digital signage and promotion capabilities, ultra-narrow-bezel LCD video walls were installed in the lobby and selected meeting areas. Capabilities include:
- Multi-window layouts, single-source stretching, and synchronized playback
- Scalable video wall controller with real-time content switching and scheduling
- Support for live event feeds, IPTV sources, and media-server playlists
Centralized AV Control & System Integration
A centralized AV control system ties together LED playback, audio routing, and video wall management. Features delivered:
- Touch-panel control for one-touch recall of event presets (lighting, audio scene, display layout)
- Remote monitoring & diagnostics for device health, link status, and notification alerts
- Content management integration for digital signage scheduling and multi-zone distribution
- MDI/API endpoints to interface with hotel PMS and third-party event management systems
Technical Summary & Specifications
| Subsystem | Key Specs |
|---|---|
| LED Wall | P2.5, 4K-ready, >800 nits, front service modules, modular cabinet system |
| Video Processor | 4K@60Hz input, multi-window, EDID & scaling support, redundancy options |
| Audio System | DSP-based, Dante/AES67 capable, distributed ceiling speakers, wireless mic integration |
| Control | Touch panel UI, centralized scheduling, remote monitoring, API/PMS integration |
Operational Benefits & Guest Experience
- Enhanced visual impact: Bright, high-contrast LED displays create memorable backdrops for weddings, galas, and corporate keynotes.
- Consistent audio coverage: Even sound distribution improves intelligibility for presentations and live performances.
- Flexible content management: Multi-source playback and scheduled signage streamline event production and marketing.
- Operational efficiency: One-touch presets and remote diagnostics reduce setup time and onsite staff workload.
“This integrated AV solution enables Pullman Orchard Singapore to host high-caliber events with confidence,” said a Prestige Solutions spokesperson. “By combining fine-pitch LED, professional audio, and scalable video walls with unified control, the hotel now offers an elevated, reliable event platform.”
Keywords & SEO Terms
This article includes targeted SEO keywords for search optimization: Pullman Orchard Singapore, LED wall, LED video wall, video wall , professional audio system, hotel AV integration, digital signage, 4K video processor, event AV, and Prestige Solutions.
Contact & Next Steps
For specification details, product datasheets, or to schedule a demonstration, please contact Prestige Solutions’ project team. We offer end-to-end design, installation, and post-installation support for hotel AV and digital signage projects.
